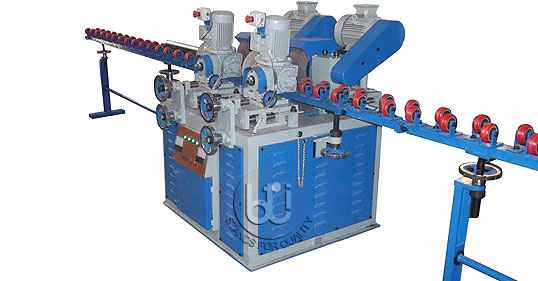

Double Head Round Tube / ROD/ PIPE POLISHING AND BUFFING MACHINE'S DESCRIPTION:
BTI-RP-2H machine combines a number of grinding and polishing heads into a sturdy, high volume production system. Depending on the finish of the input, and quality required at the output, together with the production rate, up to 2 grinding/polishing heads can be placed in series.
BTI-RP-2H Pipe polishing machine can Achieve Matt / Satin / Hair Line / High Gloss Finish with Emery flap wheels, jute wheels & buffing wheels on stainless steel / Brass / MS Tubes / Rods etc. Suitable for Grinding, polishing & Buffing of Kitchenware, Stainless steel, M.S., Brass, Aluminum., Pipes (tubes) & Rods, Motor Bike Shocker Shells, Furniture, Wooden industries. & Small Components etc. Very useful for before plating.
Double Head Round Tube / ROD/ PIPE POLISHING AND BUFFING MACHINE'S FULL SPECIFICATIONS:
STANDARD STANDARD MODEL | BTI-RP-2H |
---|---|
Dia in Wire / Rod | 10 to 50mm |
Dia in Pipe | 10 to 80mm |
Flap Wheel | 300 x 50 x 127 (No. of 2pcs per head) (No. of 2pcs per head) |
Power of Motor H.P | 1 HP 2 Motor 5 HP 2 Motor |
Required R.P.M | 1440 |
Approx Weight in Kg. Net / Gross | 1200 / 1450 |
Floor Space required | 8' x 8' Feet |
Double Head Round Tube / ROD/ PIPE POLISHING AND BUFFING MACHINE'S FEATURES:
- High efficiency, Compact and rigid design, Durable & Long service life
- Easy to operate.
- Easy to replace the polishing materials, save working hour and increase efficiency
Double Head Round Tube / ROD/ PIPE POLISHING AND BUFFING MACHINE'S APPLICATIONS:
-
shopping Basket -
Pipes and Rods -
Furniture -
Auto Parts
-
