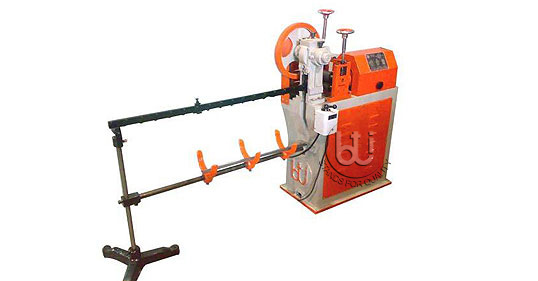

Mini Wire Straightening and Cutting Machine - BTI M-04 |
|
 |
|
|
|
WIRE STRAIGHTENING AND CUTTING MACHINE'S DESCRIPTION:
High Speed Spinner
BTI Mini Wire Straightening and Cutting Machine M-04 is a compact designed machine to serve the need of thin wire straightening and cutting 1.5 mm to 4mm mild steel, Stainless steel, Copper, Brass and Aluminium wire. BTI M-04 machine is compact but matches quality & performance with international demands that’s why it is appreciated machine in the wire industry.
BTI M-04 is used to straighten & cut wires to make cut length rods out of coils. This machine is used wherever wire is further processed in form of rods and where accurate straightening of coiled wire with clean cut required, precision and high outputs are of importance.
WIRE STRAIGHTENING AND CUTTING MACHINE'S FULL SPECIFICATIONS:
| MODEL | BTI M-04 |
| In Thickness of Wire mm | 1.5 to 4mm |
|---|---|
| In Length of Wire to be cut automatically mm | 28 to 1000 mm Length can be increased as per requirement. |
| Feeding Capacity per Min. | 90' feet |
| Power of Motor H.P | 2 HP |
| Required R.P.M | 1440 |
| Approx Weight in Kg. Net / Gross | 300 /425 |
| Floor Space required | 3' X 8' Feet |
WIRE STRAIGHTENING AND CUTTING MACHINE'S FEATURES:
- Fast Feeding
- High speed rotating spinner for getting exact straight wire
- Compact Design
- Beautiful appearance, low noise
- Low Maintenance with High Productivity
- Cutting tools is a simple construction, easy to adjust and change
- Specially designed half round straightening dies to help Smooth wire straightening
- Quickly and easily adjustable dies in spinner
- Consumes less Power
