HEAVY DUTY WIRE CUTTING AND STRAIGHTENING MACHINE DESCRIPTION:

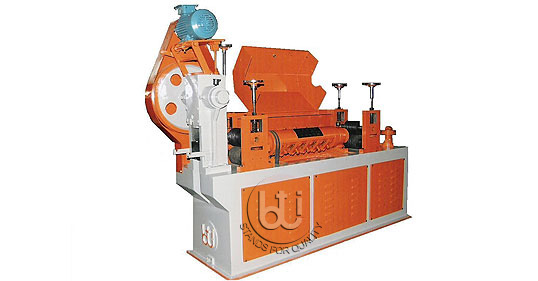

BTI Heavy Duty Wire Cutting and Straightening Machines BTI M-016, M-018 Specially designed for heavy wire industry applications. Suitable for straightening 8 mm to 18 mm mild steel, Stainless steel, Copper, Brass, TMT & Ribbed wire.

This machine is provided with 1 set of 3 pcs Pre-straightener rollers in front of first feeder. It helps to reduce sharp bend of wire coil to facilitate straightening quality & smooth feeding.

Some applications includes Manufacturing of Fasteners, Steel furniture, "U" bolts, Bright Bars , Auto parts, Ribbed / TMT Wires.

HEAVY DUTY WIRE CUTTING AND STRAIGHTENING FULL SPECIFICATIONS:

MODEL	BTI M-016	BTI M-018
In Thickness of Wire mm	8 to 16mm	10 to 18mm
In Length of Wire to be cut automatically mm	75 to 1000 mm Length can be increased as per requirement.	80 to 1000 mm Length can be increased as per requirement.
Feeding Capacity per Min.	80' feet	80' feet
Power of Motor H.P	15+2HP	20+2 HP
Required R.P.M	1440	1440
Approx Weight in Kg. Net / Gross	1800 /2050	2000 /2250
Floor Space required	6' x 22'Feet	6' x 25'Feet

HEAVY DUTY WIRE CUTTING AND STRAIGHTENING FEATURESS:

1. Fast Feeding & Straightening speed can be 18m per min
2. Two & Four sets of feed rollers for smooth feeding
3. One set of 3pcs Pre-straightener rollers
4. High speed rotating spinner for getting exact straight wire
5. Heavy Duty Machines
6. Built on rigid Steel Fabricated Frame
7. Low Maintenance with High Productivity
8. Cutting tools is a simple construction, easy to adjust and change
9. Quickly and easily adjustable dies in spinner

HEAVY DUTY WIRE CUTTING AND STRAIGHTENING APPLICATIONS:

•
  Threaded Bars
•
  "U" Bolts
•
  "J" Hooks
•
  Fasteners
•
  Bright Bars
•
  Ribbed / TMT Wires
