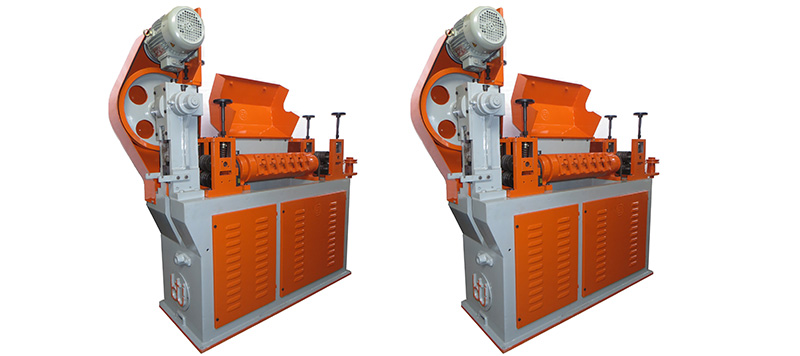

BTI M-012

BTI Wire straightening cum cutting off machine M-012, Special unique design for cutting and straightening 4 mm to 12 mm mild steel, Stainless steel, Copper, Brass and Aluminium wire. It is a heavy duty machine to fill the gap of 10 to 13mm Wire straightening cutting machines. Main reason to develop this model is to serve the customer demand of less than half inch wire cutting & straightening requirement by cost effective & high performance machine.

They are widely used in Industries concerned with Manufacturing of Fasteners, Steel furniture, Locks, R.C.C Pipes, Kitchen wares, Spring makers, “U” bolts, “J” Hooks, Bright Bars , Fan Shafts, Auto parts, Scooter Accessories, Ribbed / TMT Wires and many more.

get a quote

BTI M-012 full Specifications:

MODEL	BTI M-012
Thickness of Wire	4 to 12mm^#
Cutting Length	60 to 1000 mm *
Feeding Capacity	90' ft per Min.
Motors(2) Power H.P/ R.P.M	10+2 HP/1440 RPM
Weight Net / Gross	700 /850 Kg. Approx.
Floor Space required	5' X 14' Feet

* Cutting length can be increased as per Customer requirement. ** Standard Voltage 415v/ 50hz. Can be Changed as per Customer requirement. # Wire diameter range could be changed as per wire material.
