BTI M-016 & M-017

Home
BTI M-016 & M-017

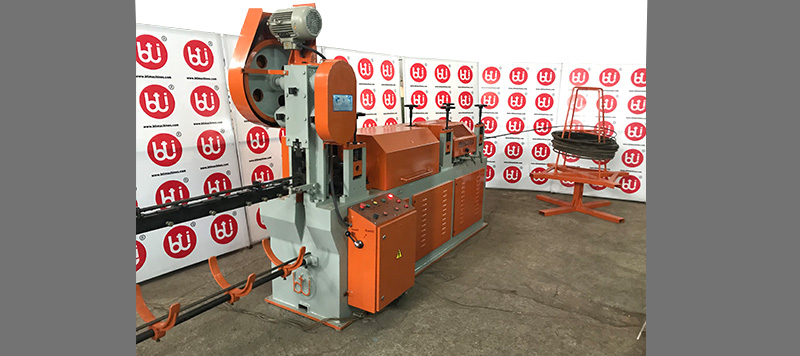

BTI Heavy Duty Wire Cutting and Straightening Machines BTI M-016 & BTI M-017 Specially designed for heavy wire industry applications. Suitable for straightening 8 mm to 16 mm / 8 mm to 17 mm wires.

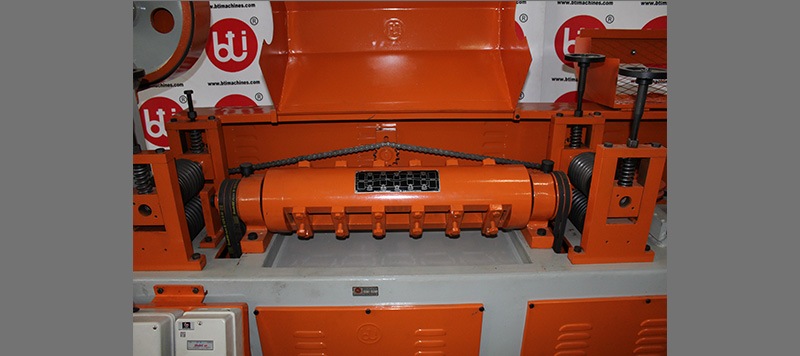

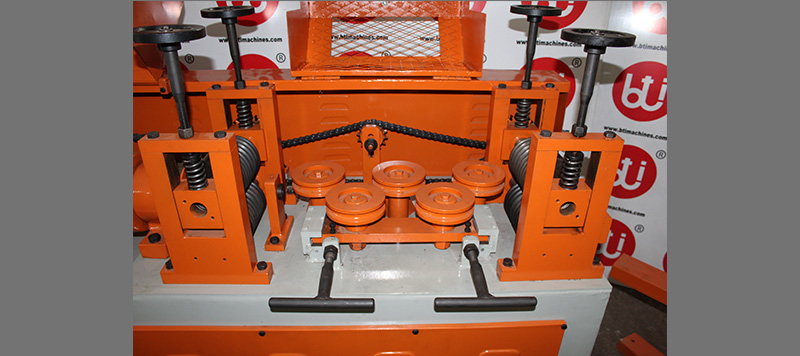

BTI M-016 & BTI M-017 is provided with Heavy Duty SIX STATION Rotating Straightener for getting exact straight wire and five Nos. Horizontal straightening rollers, It helps to reduce sharp bend of wire coil to facilitate straightening quality. BTI M-016 & BTI M-017 is provided with three sets of feed rollers for smooth feeding.

Some applications includes Manufacturing of Fasteners, Steel furniture, “U” bolts, “J” Hooks, Bright Bars , Auto parts, Ribbed / TMT Wires.

get a quote

BTI M-016 & M-017 full Specifications:

MODEL	BTI M-016	BTI M-017
Thickness of Wire	8 to 16mm^#	8 to 17mm^#
Cutting Length	75 to 1000 mm *	75 to 1000 mm *
Feeding Capacity	80' ft per Min.	80' ft per Min.
Motor Power H.P/ R.P.M	15 + 2 HP/1440 RPM	15 + 2 HP/1440 RPM
Weight Net / Gross	1800 /2050 Kg. Approx.	1900 /2200 Kg. Approx.
Floor Space required	6' X 22' Feet	6' X 22' Feet

* Cutting length can be increased as per Customer requirement. ** Standard Voltage 415v/ 50hz. Can be Changed as per Customer requirement. # Wire diameter range could be changed as per wire material.
