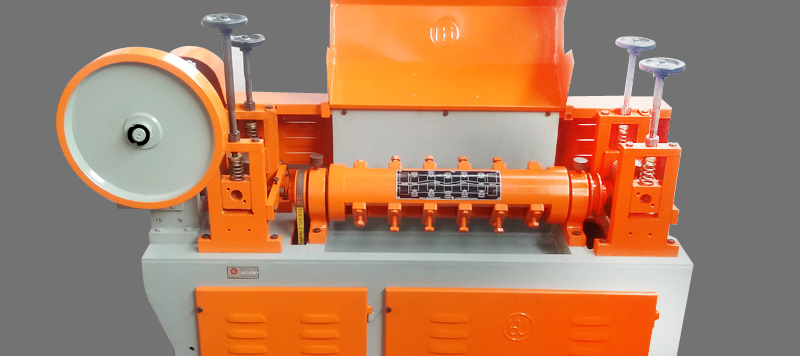

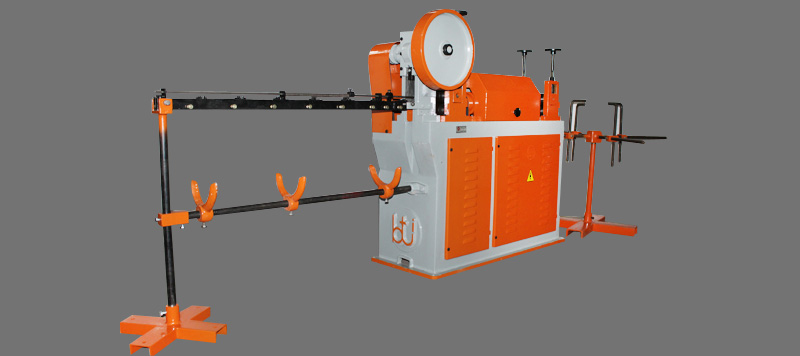

BTI M-06 & BTI M-07

BTI Automatic Wire Straightening cum Cutting Machine Model No. M-06 & M-07 is our most demanding machine in wire industry. It has double feed rollers to help continuous wire feeding. Due to its six station high speed spinner, fast feeding, less power consumption & high performance makes it largest selling product manufactured by us.

BTI M-06 & 07 is used to cut straightened required length rods from wire coils. Ideally suitable of Welded Wire Mesh, Welding Electrodes, Gas Welding Rods, Locks, Umbrellas, Toys, Fan Cover, R.C.C Pipes, Kitchen wares, Spring making, “U” bolts, “J” Hooks, Bright Bars , Fasteners, Auto parts, Wire fence, Hand crafts items, Scooter Accessories & many more.

get a quote

BTI M-06 & BTI M-07 full Specifications:

MODEL	BTI M-06	BTI M-07
Thickness of Wire	2 to 6mm^#	2.5 to 7mm^#
Cutting Length	28 to 1000 mm *	28 to 1000 mm *
Feeding Capacity	90' ft per Min.	90' ft per Min.
Motor Power H.P/ R.P.M	3 HP/1440 RPM	3 HP/5HP (opt)1440
Weight Net / Gross	425 /550 Kg. Approx.	450 /575 Kg. Approx.
Floor Space required	3' X 12' Feet	3' X 12' Feet

* Cutting length can be increased as per Customer requirement. ** Standard Voltage 415v/ 50hz. Can be Changed as per Customer requirement. # Wire diameter range could be changed as per wire material.

Operating Video:

BTI M-06 & BTI M-07 Features:

Fast Feeding

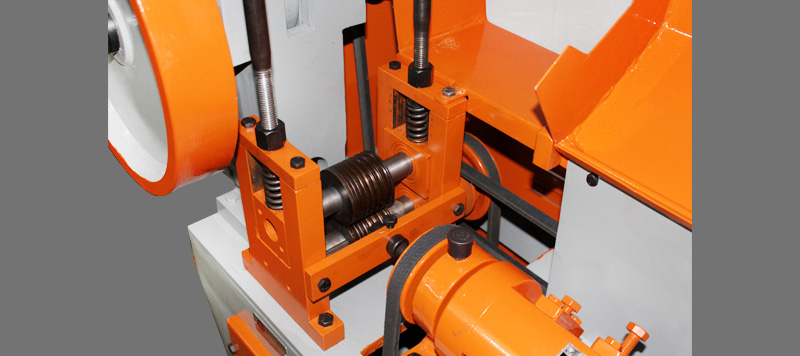

Double set of feed roller for smooth feeding

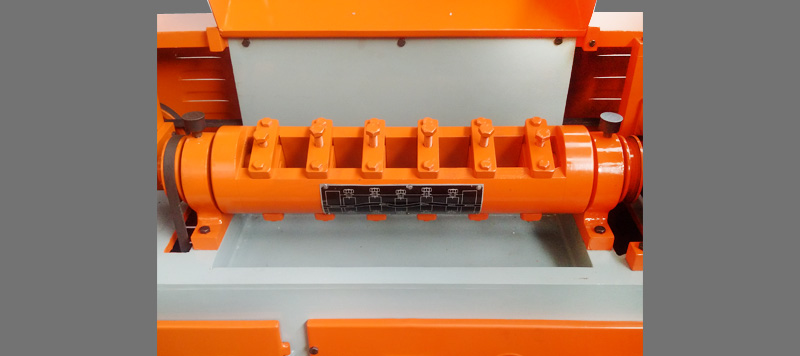

High speed rotating spinner for getting exact straight wire
Compact Design
Good Looks & low operational noise
Low Maintenance with High Productivity
Cutting tools is a simple construction, easy to adjust and change
Specially designed half round straightening dies to help Smooth wire straightening
Quickly and easily adjustable dies in spinner
Consumes less Power
